• 支援所有採樣流量 ≥ 2 LPM 的採樣裝置
• 無懼採樣過程中壓力波動，恆定輸出後端採樣裝置所需流量

• 相容性強 可相容於其它品牌不同流量塵埃粒子計數器與浮游菌採樣器
• 準確可靠 內置差壓計與電磁閥可精確提供後端檢測設備所需氣體量
• 無溢流 輸出體積完全等於檢測所需體積

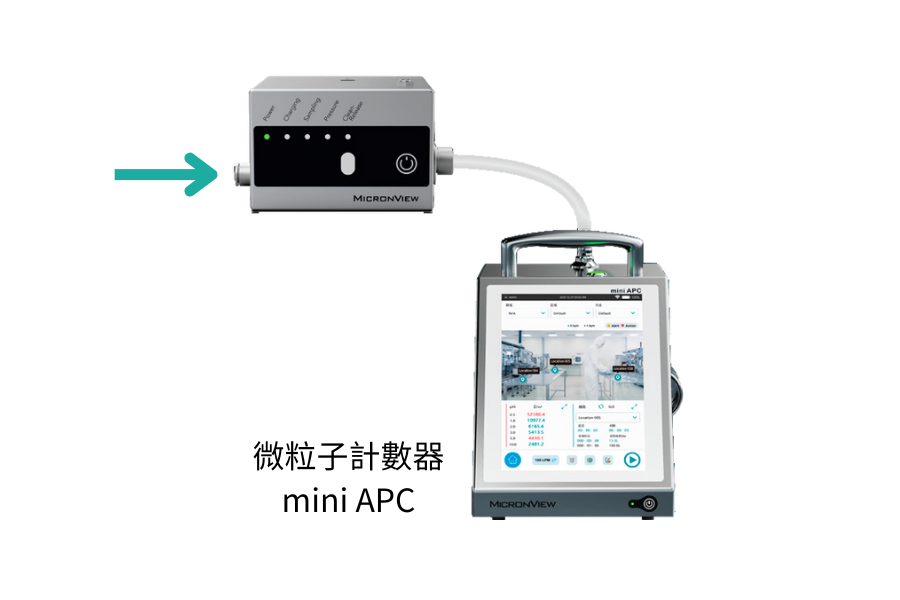

經典應用：壓縮氣體的粒狀物檢測

SPECIFICATIONS

• GAS TYPE： Air, N₂, CO₂, O₂, Ar and other inert gases(only for non-flammable and non-explosive areas)
• FLOW RATE： ≥2LPM
• INLET RELATIVE PRESSURE： 1-7bar
• LIMITED RELATIVE PRESSURE:  > 10bar
• INLET TUBE DIAMETER:   ID: 5mm, OD: 8mm
• OUTLET TUBE DIAMETER:   ID:6mm, 8mm, 12mm, 14mm, 16mm, 20mm selectable
• DIMENSIONS(HxWxD)： 100x70x90mm/3.94×2.76×3.54in (with foot mat）
• WEIGHT： 0.82kg (1.8lbs)
• EXTERNAL SURFACE： Anodized aluminium
• POWER： AC 100-240V, 50/60Hz
• BATTERY： 3×3.6V, 3400mAh, rechargeable lithium battery, running for over 6 hours
• MAXIMUM POWER CONSUMPTION： 3.3W
• OPERATING CONDITIONS:  5-35℃(41-95℉), 5-90%RH non-condensing
• STORAGE CONDITIONS:  5-35℃(41-95℉), 5-90%RH non-condensing
• WARRANTY:  24 months (calculated from the date of product activation or six months after the date of manufacture, whichever comes first)
